Shuguang 6N6-T Mil Spec

6N6-T  TECHNICAL DATA

equivalent: 6Н6П / 6H6Pi

Used by Priboj + Little Dot + Dot MK2 amplifier

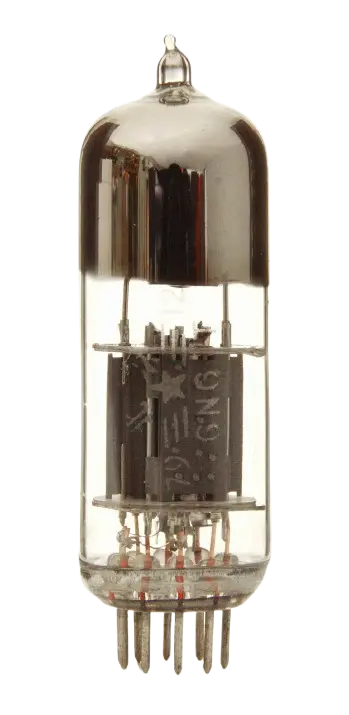

Note: darker areas in the getter mirror may occur due to production (double flashing) and do not represent any impairment. (see picture)

Basic data:

    Height(not include pin): <=65 mm

    Diameter: <=22.5 mm

    Weight: <=16 g

Electrical parameter:

    Filament voltage:    6.3 V

    Filament current:    750 +/-60 mA

    Anode voltage:    120 V

    Anode current:    80 +/-10 mA

    Cathode resistance:    68 ohm

    Transconductance:    11 +/-2.9 mA/V

    Amplification:    20 +/-4

    Grid reverse resistance:    <=0.5 nA(microampere)

    Lifetime:    >=500 hours

    Inner resistance:    1.8 kohm

    Transroute capacitance:    <=3.7 pF

    Input capacitance:    4.4 +0.8/-0.7 pF

    Output capacitance:    for first triode---1.9 +/-0.3 pF; for second triode-----2.05 +/-0.35 pF

    Capacitance in anode:    <=0.3 pF

    Capacitance between cathode and filament:    <=9 pF

Allowed limit data:

    Max. filament voltage:    6.9 V

    Min, filament voltage:    5.7 V

    Max. anode voltage:    3

    Max. cathode current:    45 mA

    Max. anode dissipation:    4.8 watts

    Max. cathode resistor:    1 M ohm

    Max. voltage between cathode and filament:    +/-200 V

Wiring:

    Pin 1: first triode's anode;

    Pin 2: first triode's grid;

    Pin 3: first triode's  cathode;

    Pin 4: filament;

    Pin 5: filament;

    Pin 6: second triode's anode;

    Pin 7: second triode's grid;

    Pin 8: second triode's cathode;

    Pin 9: spacer
