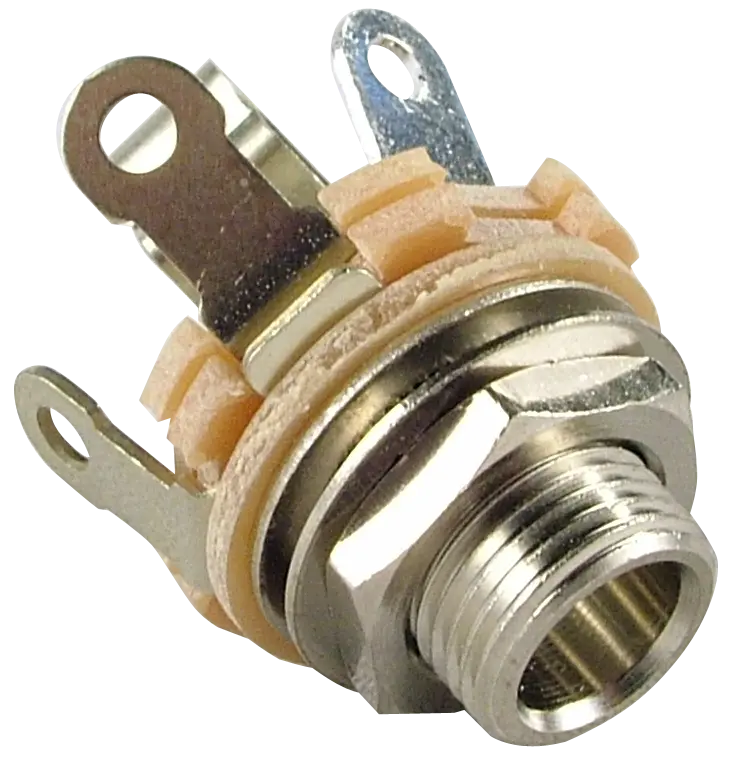

Switchcraft 1/4" Mono Switched Socket
Switchcraft Type 12A Littel-Jax shorting type phone jack. The switched terminal is normally closed and is usually connected to ground to eliminate hum when unplugged. Includes nut and washer
- Type 12A
- 0.275" bushing length
- Mates with standard ¼" plugs and is available with 0.25" inside diameter bushing.
- Mono 2-Conductor.
- Includes nut and washer
- Tip is shunt
| Mounting Bushing | Nickel-plated copper alloy. |
| Insulation | Rigid plastic |
| Springs | Special copper alloy. Fine silver contacts |
| Sleeve Terminal | Copper alloy |
| Hardware | Supplied with one copper alloy nickel-plated hex nut, and one copper alloy nickel-plated washer |
Switching Diagram for standard (0.275"):
| Brand: Switchcraft |
