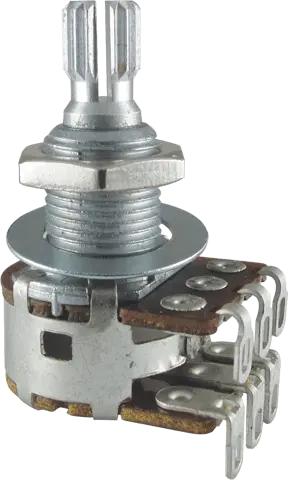

Bourns, Dual MN Taper, Knurled Shaft Potentiometer

Bourns, Dual MN Taper, Knurled Shaft Potentiometer

https://nztubes.nz/web/image/product.template/135/image_1920?unique=5cfa68e

Dual MN taper blend-balance with center detent. Split shaft. 17 mm body diameter. ¼" watt, 300° rotation. ¼" shaft diameter. Solder lugs. ⅜" bushing.

M taper: 0% to 100% output voltage from 0% to 50% rotation (linear). 100% output voltage from 50% to 100% rotation.

N taper: 100% output voltage from 0% to 50% rotation. 100% to 0% output voltage from 50% to 100% rotation (linear).

Full output for both outputs at 50% rotation (center detent).

Taper:

$ 7.00 7.0 NZD $ 7.00

$ 7.00

Not Available For Sale

  • Brand
  • Potentiometer

This combination does not exist.

Contact Us
Brand: Bourns
